1
Right shelf

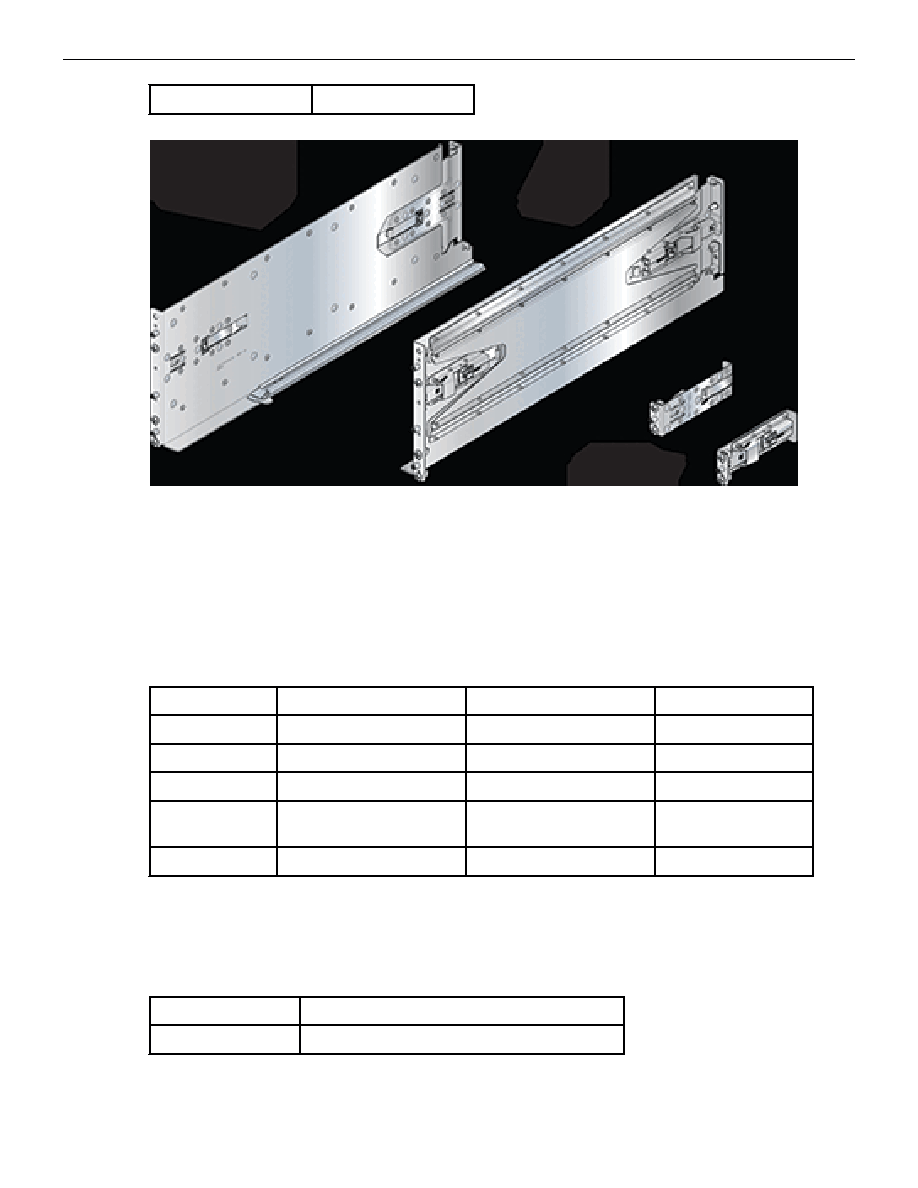

Figure 37: Four-Post Rack Mount Parts
1
Left shelf
2
Right shelf
3
Mounting ears
C.3
Four-Post Rack Mount Kit (Optional - 106-575-074-00)
Part Number
Quantity
Description
Rack Type
036-030-014
18
M610 clip nuts
Round hole
036-023-025
18
M6 cage nuts
Square hole
036-020-051
18
12-24 x .50 screws
Threaded hole
106002508
18
M6 x .50 screws
Square, round, and
threaded hole
036-701-148
18
10-32 x .50 screws
Threaded hole
C.4
Two-Post Rack Mount Parts
Two-post rack mount parts for DCS-7304 and DCS-7308 switches are available through your sales
representative. Two-post rack mounts are not supported for DCS-7316 switches.
Quantity
Description
2
Center-mount brackets.
