Chapter

Connecting Serial and Management Cables

5.1

Connecting Supervisor Cables

Supervisor modules contain console, management, and USB ports. Figure 24: Supervisor Ports

(DCS-7300(-D)-SUP) displays status LED and port locations on 7300 Series Modular switch

supervisor.

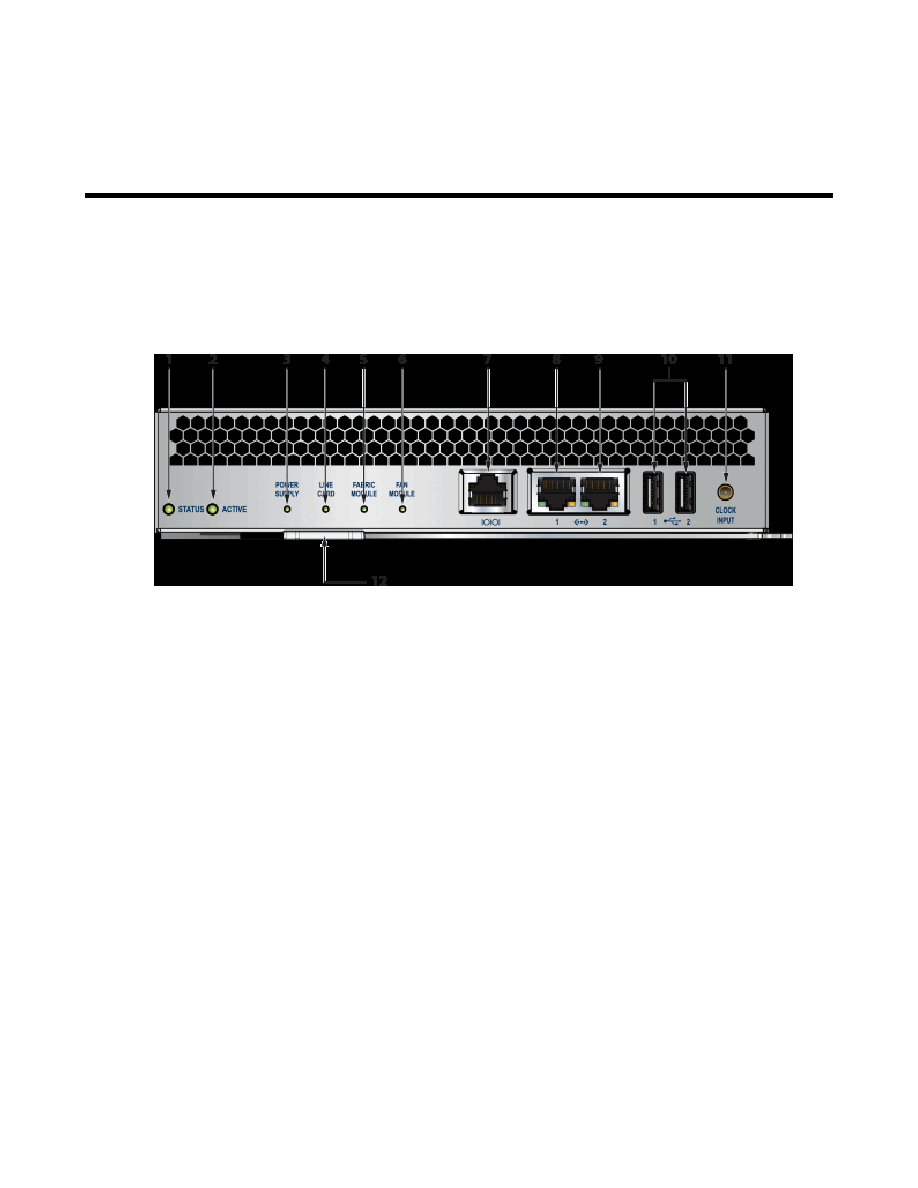

Figure 24: Supervisor Ports (DCS-7300(-D)-SUP)

Status LED

Fabric module status

LED

Ethernet management

port

Active LED

Fan module status LED 10

USB ports

Power supply status

LED

Console serial port

Clock input port

Line card status LED

Ethernet management

port

Release lever

•

Console (Serial) Port: Connect to a PC with RJ-45 to DB-9 serial adapter cable. Default switch

settings include:

•

9600 baud

•

No flow control

•

1 stop bit

•

No parity bits

•

8 data bits

•

Ethernet Management Port: Connect to 10/100/1000 management network with RJ-45 cable.

•

USB Port: May be used for software or configuration updates.

•

Clock Input Port: Port type is MCX connector, 2-5.5V, 50 ohm termination.
