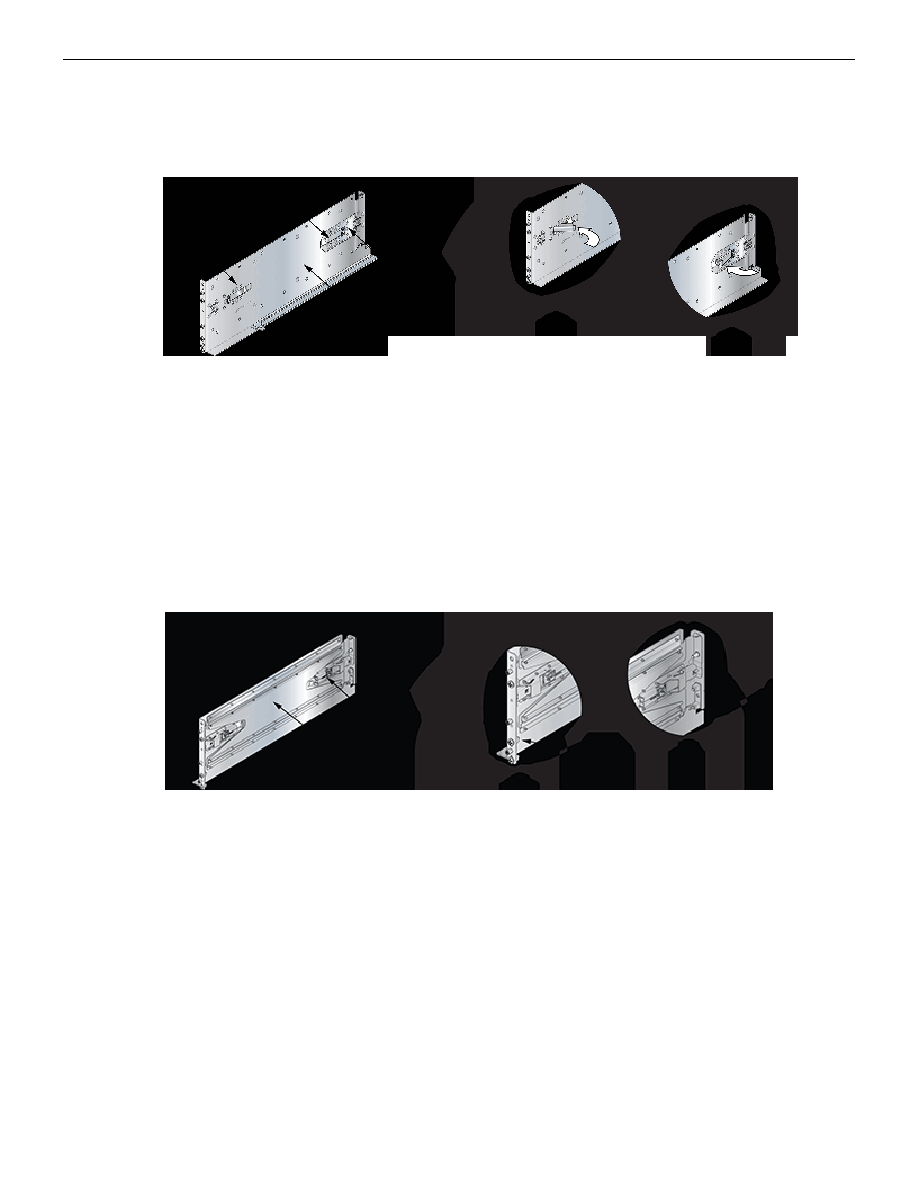

Figure 6: Left Shelf – Inner View displays the inner view of the left shelf. Depending on the rack kit

ordered, each shelf may include latches to the locking mechanism that secures the shelf to the rack. If

the locking mechanism is not present, the kit shall be attached with appropriate screws (not included).

Figure 6: Left Shelf – Inner View displays latches that are closed; the insets display open latches The

inner side of each shelf is oriented toward the center of the rack.

Figure 6: Left Shelf – Inner View

Front post attachments

Rear post attachments

Stabilizer bar (left shelf

only)

Front latch (closed)

Slide-end

Front latch (open)

Rear latch (closed)

Base

Rear latch (open)

Figure 7: Right Shelf – Outer View displays the outside view of the right shelf, from where rack plugs

and guide pins that insert into rack posts are visible (Insets A and B). To install shelves into posts with

threaded or rounded holes, attach the shelves with bolts that fit the rack. Remove all plugs from the

shelves if present.

Figure 7: Right Shelf – Outer View

Front post attachments

(Inset A)

Rear post attachments

(Inset B)

Inset B

Base

Inset A

Rack plugs

Slide-end

Rack plugs

3.2.1.2

Mounting Ears

Figure 8: Mounting Ears displays the mounting ears, which secure the switch top to the rack. The two

mounting ears are identical and installed above each shelf. The inner side of each ear may include a

latch to the locking mechanism that secures the ear to the rack.
