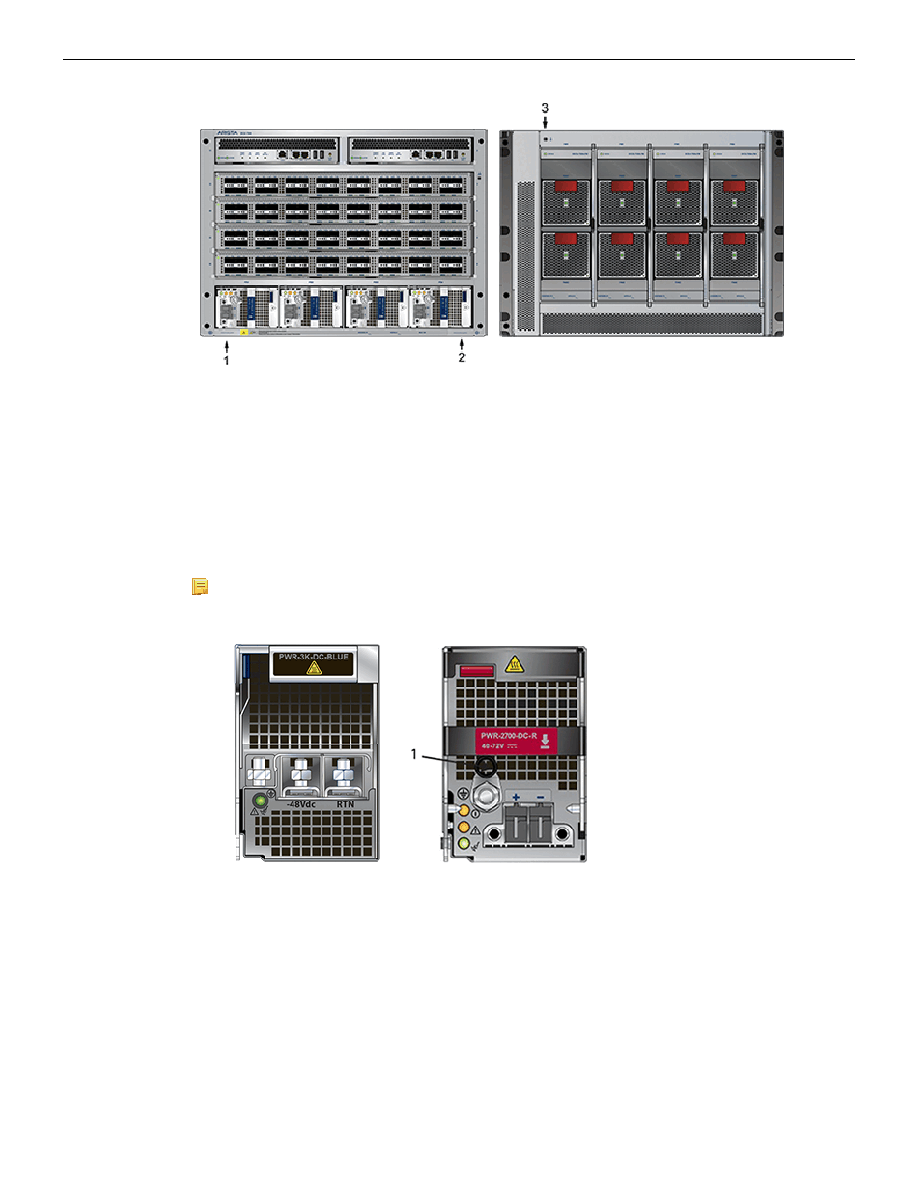

Figure 18: Secondary Ground Pads
1
Secondary ground
2
Secondary ground
3
Earth grounding pad
Note: The power supply orientation in your device may be different from the one shown
in Figure 19: PWR-3K-DC-Blue and PWR-2700-DC-R Power Supplies .
Figure 19: PWR-3K-DC-Blue and PWR-2700-DC-R Power Supplies
1
Primary ground
4.2.2
Wire and Lug Preparation
Before performing any installation actions, ensure power is removed from DC circuits by turning off the
power line servicing the circuits. Prepare the stranded wiring before you begin a DC power installation.
1. Stranded copper wiring is required.
26
