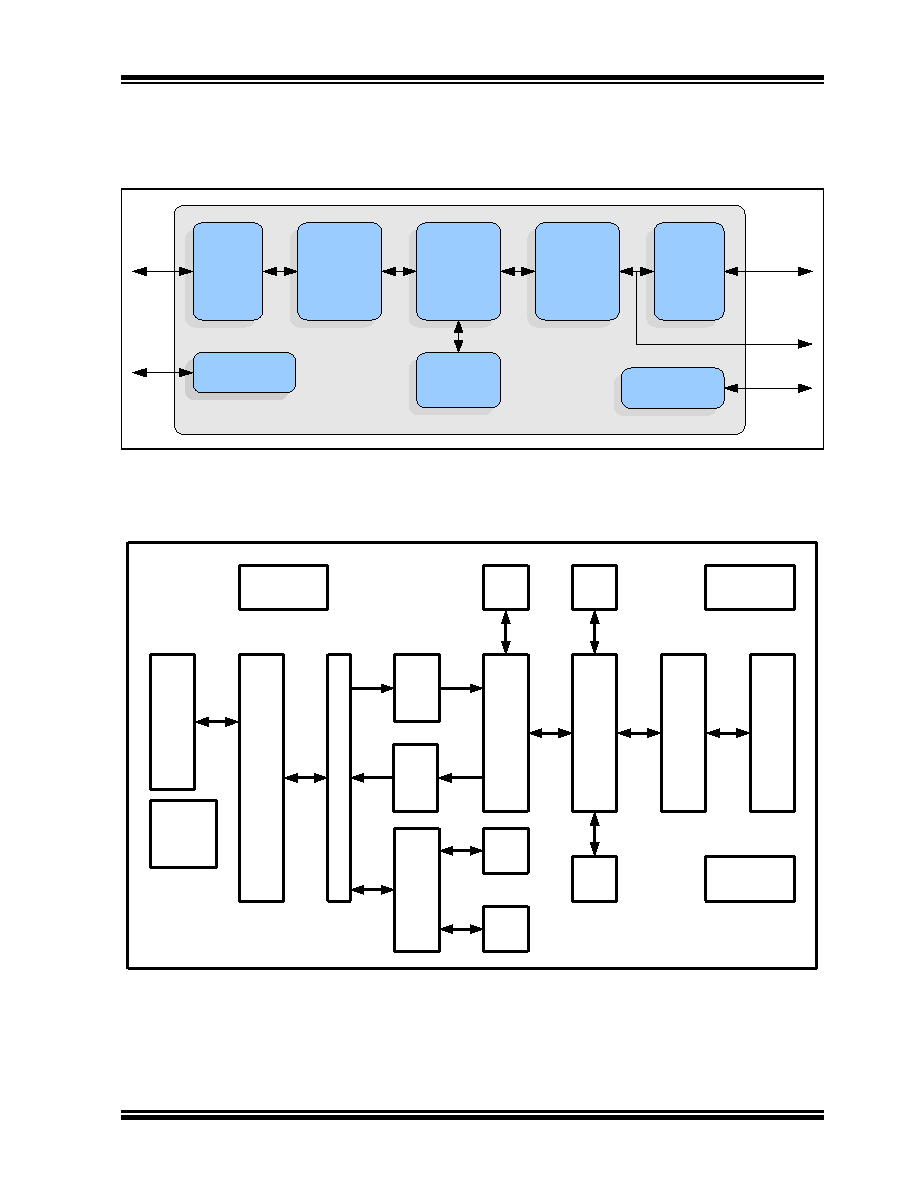

7 / 213 page  2010 - 2015 Microchip Technology Inc. DS00001875A-page 7 LAN950x 2.2 Block Diagram FIGURE 2-1: LAN950X BLOCK DIAGRAM FIGURE 2-2: LAN950X SYSTEM DIAGRAM TAP Controller EEPROM Controller USB 2.0 Device Controller SRAM Ethernet PHY 10/100 Ethernet MAC FIFO Controller USB PHY LAN950x MII: To optional external PHY Ethernet EEPROM JTAG USB UDC MAC FCT RAM 7Kx32 TLI Reg File 512x37 Reg File 32x37 EEPROM Controller ETH PHY USB PHY 8-bit 60 MHz UTMI+ UTX TAP Controller USB Common Block URX CTL M U X Reg File 128x32 SCSR CPM |
|
