2.2 Timer

(4)

Timer application example 3: Frequency measurement

Outline: The following two values are compared to judge whether the frequency is within a valid

range.

•A value by counting pulses input to P60/CNTR1 pin with the timer.

•A reference value

Specifications: •The pulse is input to the P60/CNTR1 pin and counted by the timer 4. (Note 1)

•A count value of timer 4 is read out at about 2 ms intervals, the timer 1 interrupt

interval. When the count value is 28 to 40, it is judged that the input pulse is valid.

•Because the timer is a down-counter, the count value is compared with 227 to 215

(Note 2).

Notes 1: In the mask option type P, use the CNTR0 pin and timer 2.

2: 227 to 215 = {255 (initial value of counter) – 28} to {255 – 40}; 28 to 40 means the number

of valid value.

Figure 2.2.22 shows the judgment method of valid/invalid of input pulses; Figure 2.2.23 shows the

relevant registers setting; Figure 2.2.24 shows the control procedure.

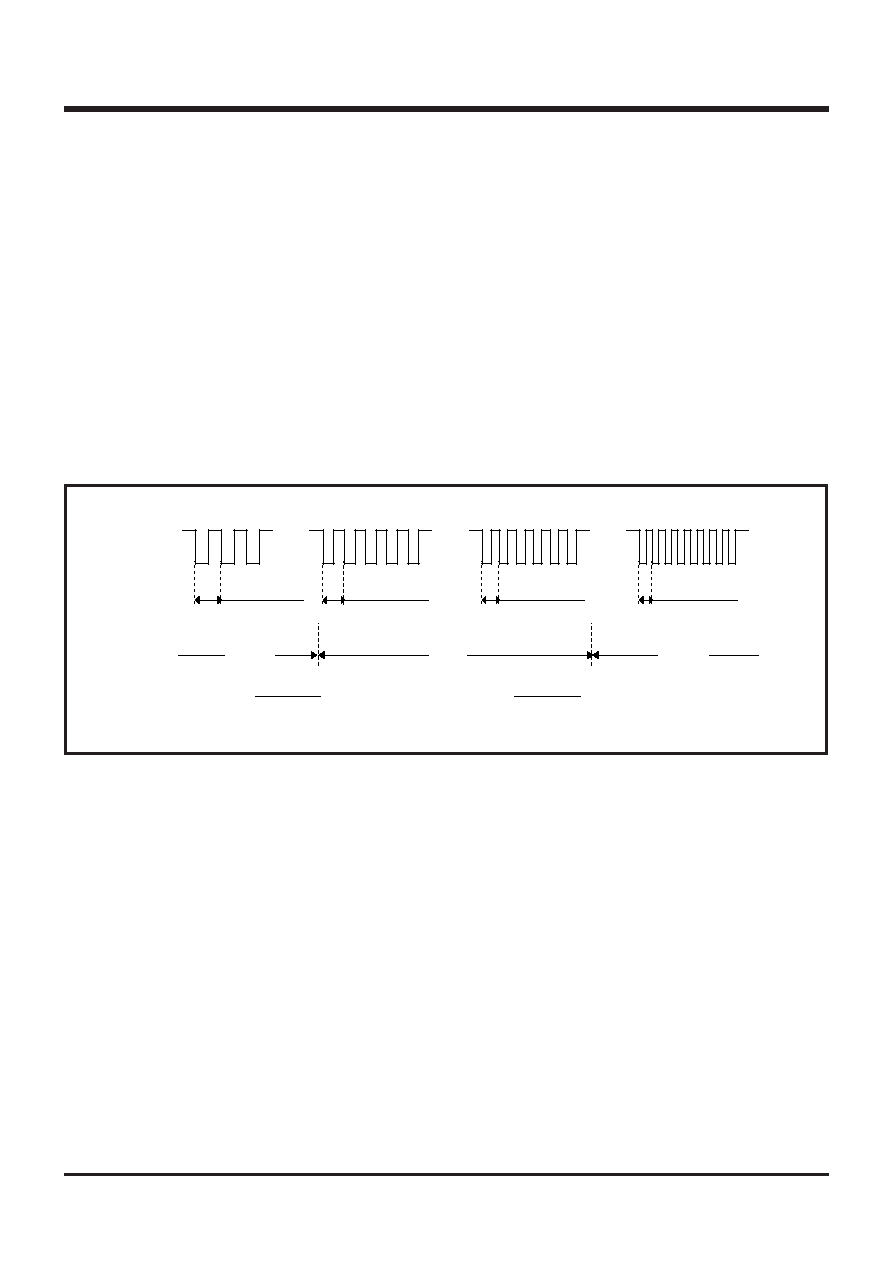

Fig. 2.2.22 Judgment method of valid/invalid of input pulses

Input pulse

2 ms

71.4

µs

= 28 counts

71.4

µs or more

(14 kHz or less)

71.4

µs

(14 kHz)

µs

(20 kHz)

µs or less

(20 kHz or more)

Invalid

Valid

Invalid

2 ms

µs

= 40 counts
