Draft.A - March 30, 2001
105
Preview - Confidential
T89C51AC2

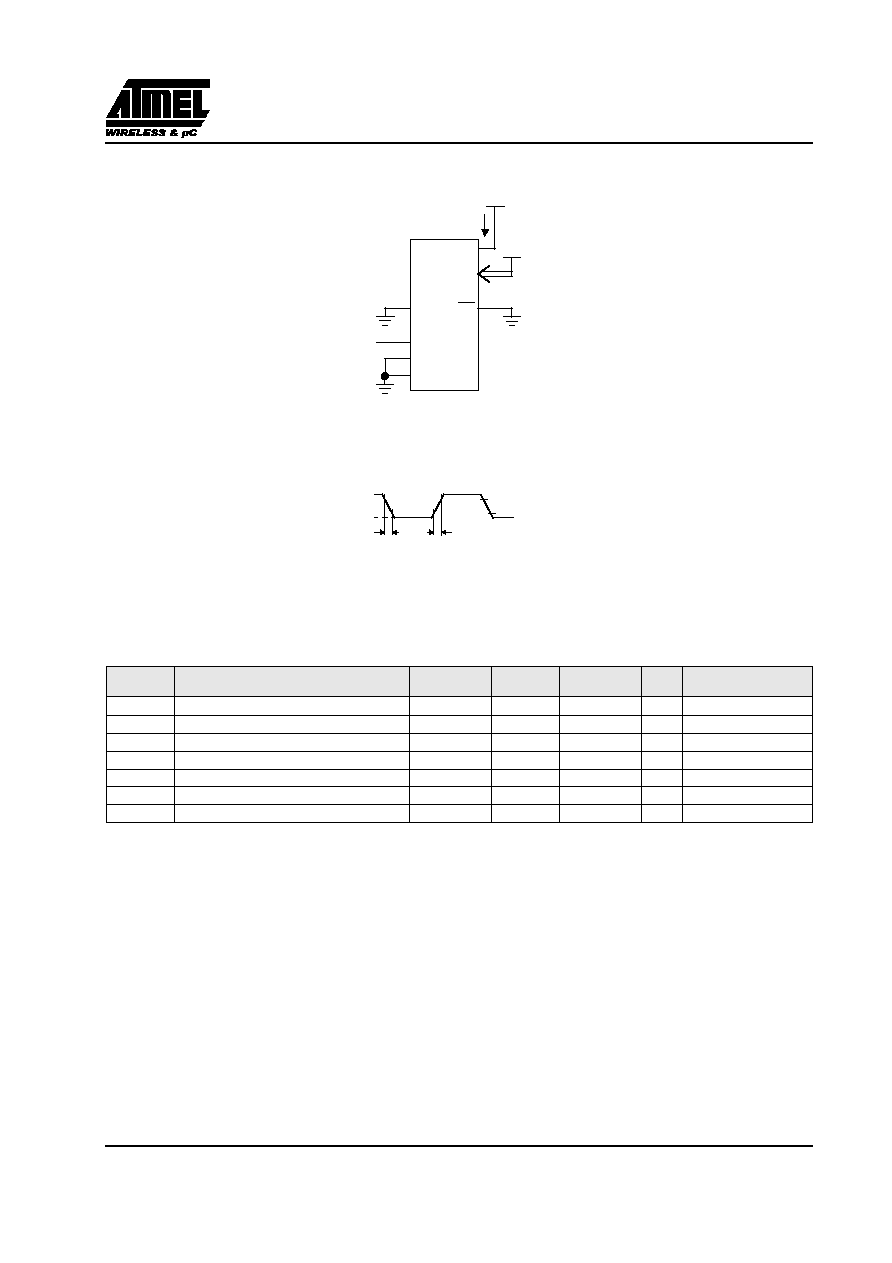

Figure 95. ICC Test Condition, Power-Down Mode
Figure 96. Clock Signal Waveform for ICC Tests in Active and Idle Modes
18.3. DC Parameters for A/D Converter
Table 25. DC Parameters for AD Converter
Symbol
Parameter
Min
Typ
Max
Unit
Test Conditions
AVin
Analog input voltage
Vss- 0.2
Vref + 0.2
V
Rref
Resistance between Vref and Vss
12
18
24
KOhm
Vref
Reference voltage
2.40
3.00
V
Cai
Analog input Capacitance
60
pF
During sampling
INL
Integral non linearity
1
2
lsb
DNL
Differential non linearity
0.5
1
lsb
OE
Offset error
-2
2
lsb
RST
EA
XTAL2
XTAL1
VSS
VCC
VCC
ICC
(NC)
P0
VCC
All other pins are disconnected.
VCC-0.5V
0.45V
0.7VCC
0.2VCC-0.1
TCLCH
TCHCL
TCLCH = TCHCL = 5ns.
