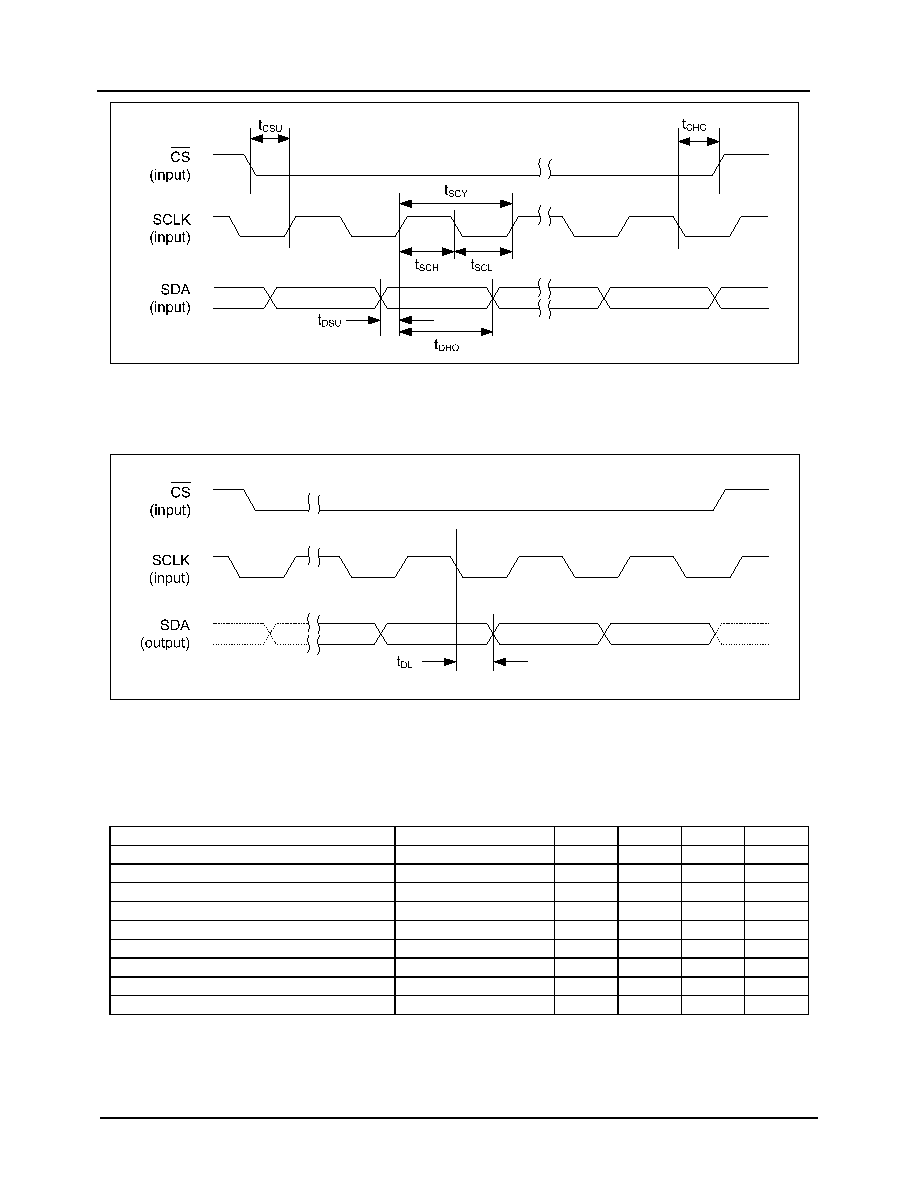

20 / 175 page ![]() WM8946 Production Data w PD, July 2012, Rev 4.3 20 Figure 6 Control Interface Timing - 3-wire (SPI) Control Mode (Write Cycle) Note: The data is latched on the 32 nd falling edge of SCLK after 32 bits have been clocked into the device. Figure 7 Control Interface Timing - 3-wire (SPI) Control Mode (Read Cycle) Test Conditions DCVDD = 1.8V, DBVDD = LDOVDD = SPKVDD = 3.3V, LDOVOUT = 3.0V, GND = 0V, TA = +25 oC, 1kHz signal, fs = 48kHz, PGA gain = 0dB, 24-bit audio data unless otherwise stated. PARAMETER SYMBOL MIN TYP MAX UNIT CS ¯¯ falling edge to SCLK rising edge tCSU 40 ns SCLK falling edge to CS ¯¯ rising edge tCHO 10 ns SCLK pulse cycle time tSCY 200 ns SCLK pulse width low tSCL 80 ns SCLK pulse width high tSCH 80 ns SDA to SCLK set-up time tDSU 40 ns SDA to SCLK hold time tDHO 10 ns Pulse width of spikes that will be suppressed tps 0 5 ns SCLK falling edge to SDA output transition tDL 40 ns |
|
