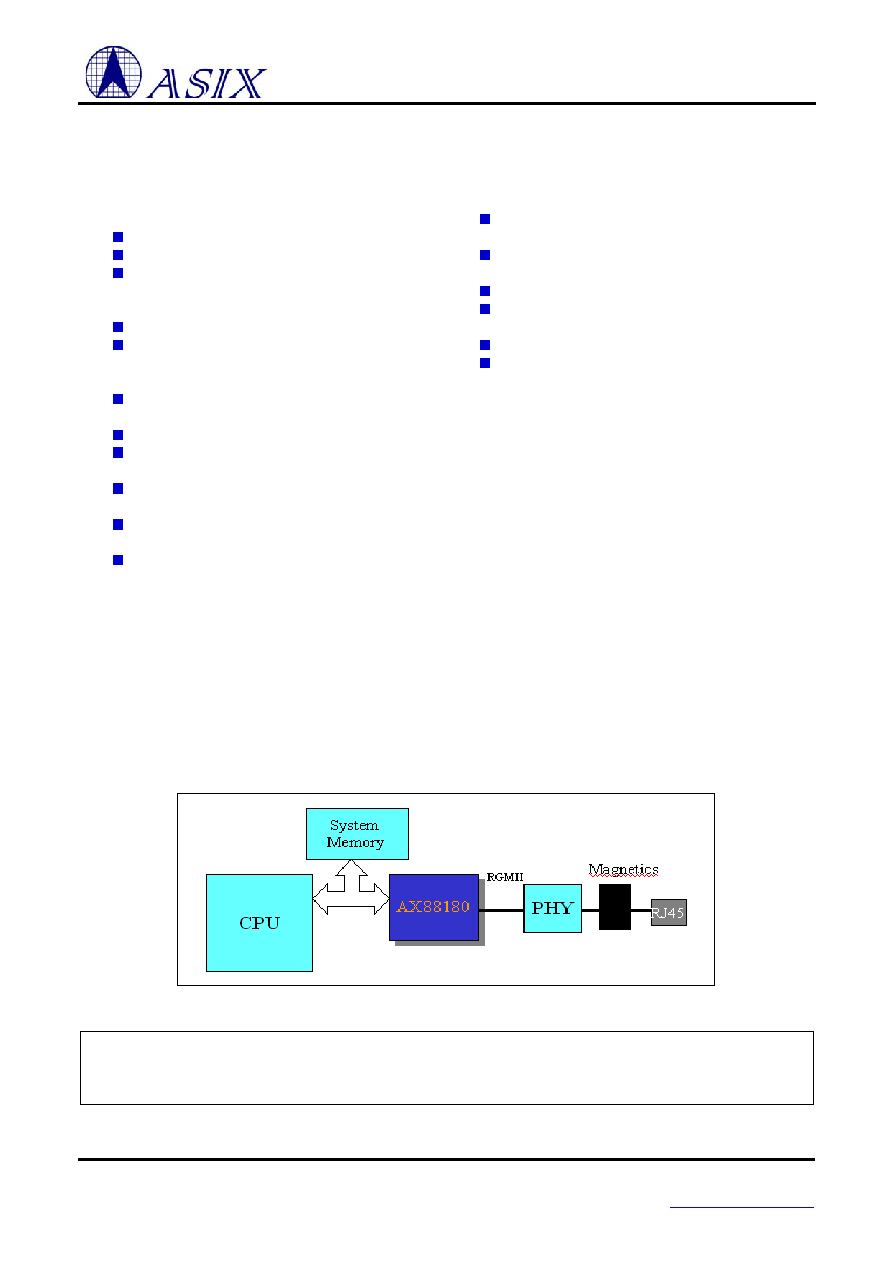

1 / 47 page  AX88180 ASIX ELECTRONICS CORPORATION Released Date: 5/18/2007 4F, NO.8, Hsin Ann Rd., Hsinchu Science Park, Hsinchu, Taiwan, R.O.C. TEL: 886-3-579-9500 FAX: 886-3-579-9558 http://www.asix.com.tw High-Performance Non-PCI 32-bit 10/100/1000M Gigabit Ethernet Controller Document No: AX88180/V1.4 Features ● High-performance non-PCI local bus 16/32-bit SRAM-like host interface Support big/little endian data bus type Large embedded SRAM for packet buffers 32K bytes for receive buffer 8K bytes for transmit buffer Support IP/TCP/UDP checksum offloads Support interrupt with high or low active trigger mode ● Highly-integrated Gigabit Ethernet controller Compatible with IEEE802.3, 802.3u, and 802.3ab standards Support 10/100/1000Mbps data rate Support full duplex operation with 1000Mbps data rate Support full and half duplex operations with 10/100Mbps date rate Support 10/100/1000Mbps N-way Auto-negotiation operation Support IEEE 802.3x flow control for full-duplex operation Support 10/100/1000Mbps data rate with RGMII or MII in 10/100Mbps data rate. Support back-pressure flow control for half-duplex operation Support packet length set by software Support max 4K bytes JUMBO packet ● Support Wake-on-LAN function by following events Detection of network link-up state Receipt of a Magic Packet ● Support Magic Packet detection for remote wake-up after power–on reset ● Support EEPROM interface ● Support PCMCIA in 16-bit mode ● Support synchronous or asynchronous mode to host MCU ● Integrated voltage regulator from 3.3V to 2.5V ● 2.5V for core and 3.3V I/O with 5V tolerance ● 128-pin LQFP with CMOS process, RoHS package ● US patent approved (NO 6799231) Product Description The AX88180 is a high-performance and cost-effective non-PCI Gigabit Ethernet controller for various embedded systems including consumer electronics and home network markets that require a higher bandwidth of network connectivity. The AX88180 supports 16/32-bit SRAM-like host interface and Gigabit Ethernet MAC, which is IEEE802.3 10Base-T, IEEE802.3u 100Base-T, and IEEE802.3ab 1000Base-T compatible. The AX88180 supports full-duplex or half-duplex operation at 10/100/1000Mbps speed with auto-negotiation or manual setting. The AX88180 integrates large embedded SRAM for packet buffers to accommodate high bandwidth applications and supports IP/TCP/UDP checksum to offload processing loading from microprocessor/microcontroller in an embedded system System Block Diagram Always contact ASIX for possible updates before starting a design. This data sheet contains new products information. ASIX ELECTRONICS reserves the rights to modify product specification without notice. No liability is assumed as a result of the use of this product. No rights under any patent accompany the sale of the product. |
